My Tiny Home. Gallery Thumbnails

Chateau GALLERY

HOME OWNER

Paula

Rating

Stunning 5 Star. There are a lot of companies building tiny houses now, but if you are looking for a well thought out home with an easy, fuss-free, professional build, I thoroughly recommend mytinyhome.

Posted

Feb, 15th, 2020

TESTIMONIAL

Working with Brent and his team at mytinyhome has been such a great experience. Brent is so approachable and knowledgeable and made sure I was involved throughout the design and build of my new home, sending me photos as each stage was completed, phoning to discuss ideas and inviting me into the workshop to view the progress.

Being an artist it was important to me that I could have some creative input into the project and Brent was only too happy to make that happen.

Thank you Brent. I LOVE my tiny home!

Extras

Reconfigured kitchen bathroom area • Customised cupboards and vanity • Bifold French Doors and windows • Decking and steps •

Description
MY TINY HOME
Internal dimensions	Length 9.2m x Width 2.9m x Height 3.6m
2 Story	The Chateau has a loft bedroom with stairs access, and a 2nd loft bedroom or storage area via ladder access

TRAILER
Trailer setup	Triple axle
Frame coating	Duragalv finish
Trailer brakes	Electric brakes with onboard controller
Dimensions	Width 3m x Overall length 10.5m x Height 4.2m
Rated	3.5 ton

BATHROOM
Bathroom dimensions	2.9 meter x 1.2 meter
Walls	Colorsteel x 3 walls with Titania finish
Feature wall	Colorsteel with Titania finish or Poplar plywood, unfinished.
Bathroom door	Top hung sliding door
Window	Opaque double glazed aluminum 500mm x 500mm
Lighting	LED light, standard wall switch
Shower	Enclosed 900mm x 900mm Clearlite shower
Shower wall liner	Clearlite
Hot water supply	Rinnai gas Infinity LPG Unit
Towel rail	Stainless steel

Hand basin Faucet Melamine cabinet	Wall mounted ceramic basin Single lever mixer Soft close double doors
Toilet	Standard household ceramic pan and cistern
Connection	Mains connected with macerating pump
Toilet roll holder	Stainless steel

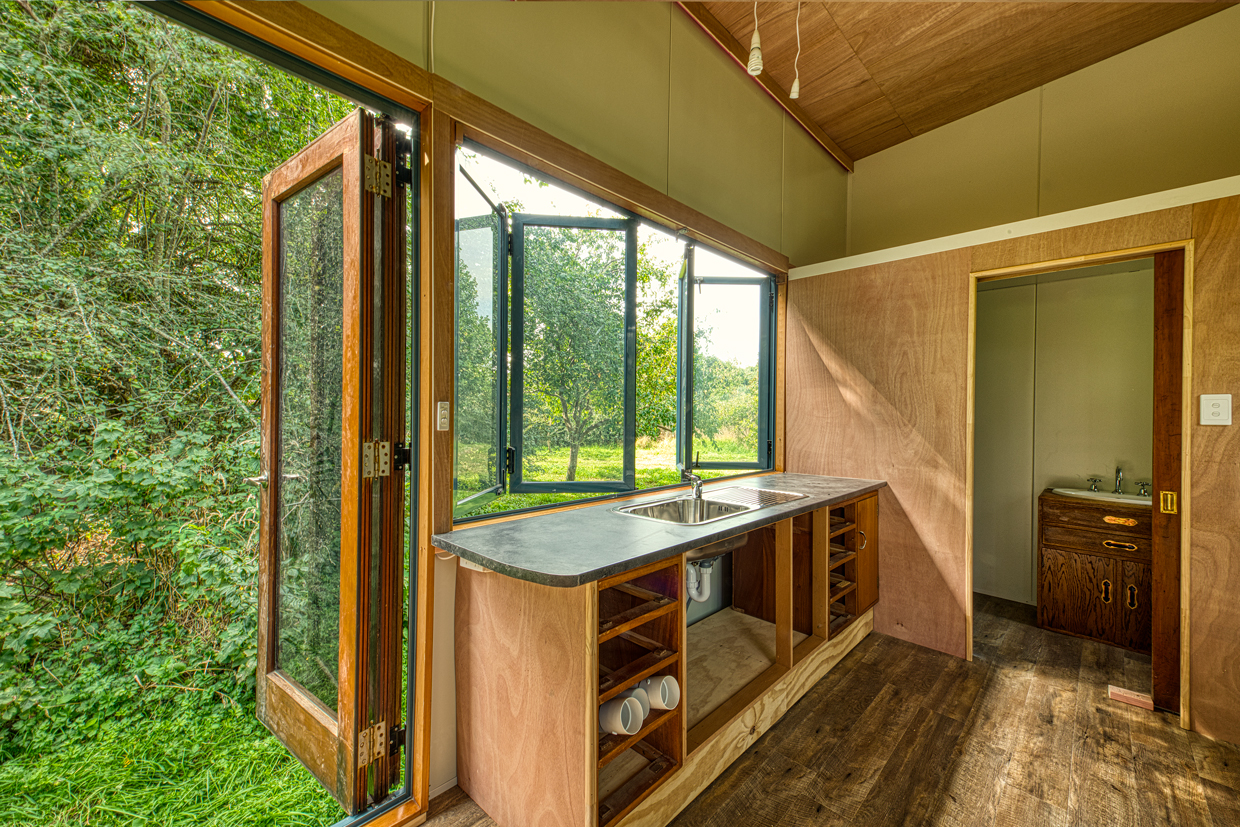

KITCHEN
Dimensions	2.3 meter x 3.2 meter
Kitchen window	Aluminum sliding double glazed, 1200mm x 700mm
Lighting	Double LED lights, standard wall switch
Kitchen bench	Formica top, 1800mm x 600mm
Cupboards	Soft close double doors
Draws	4 soft close draws
Sink	Stainless steel sink with drainer
Faucet	Stainless single lever mixer

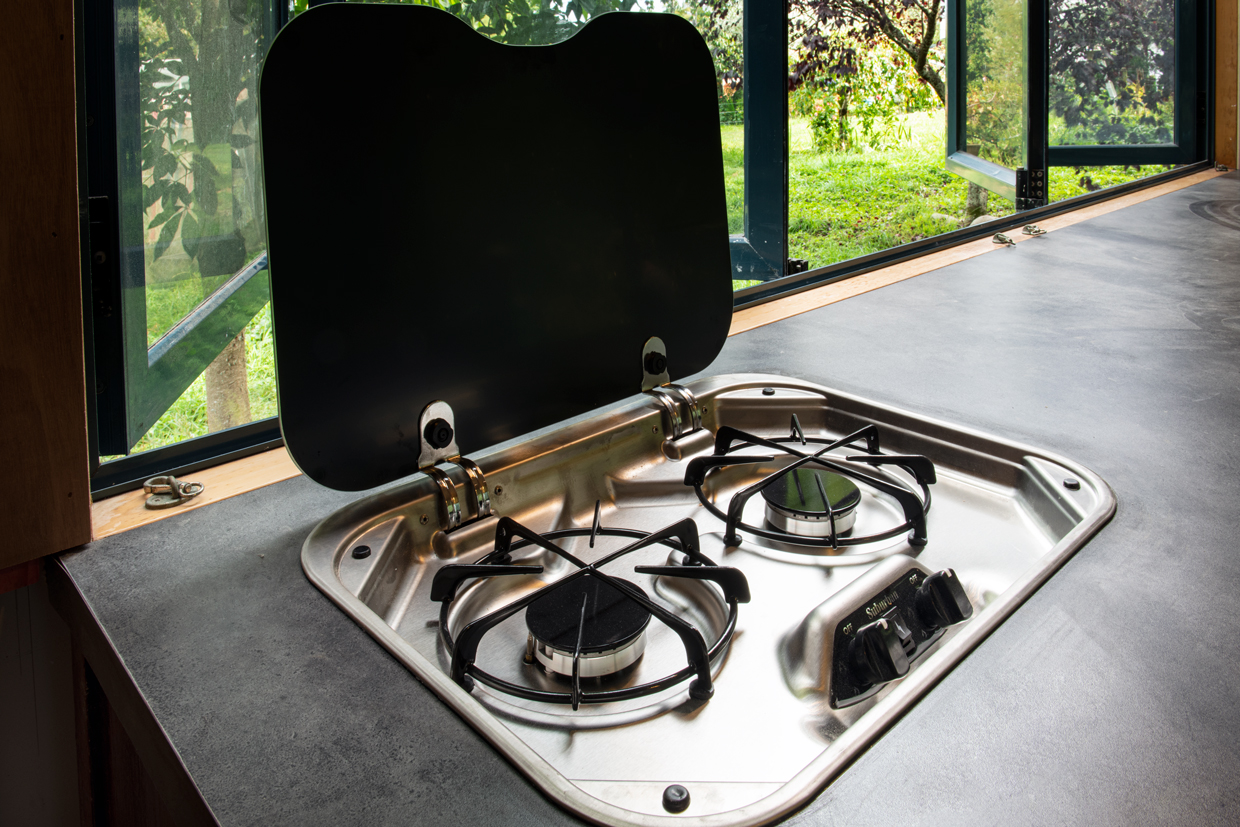

Gas hob	Stainless top 2 burner hob
Hot water	Rinnai gas Infinity LPG Unit
Waste	Mains connected with macerating pump

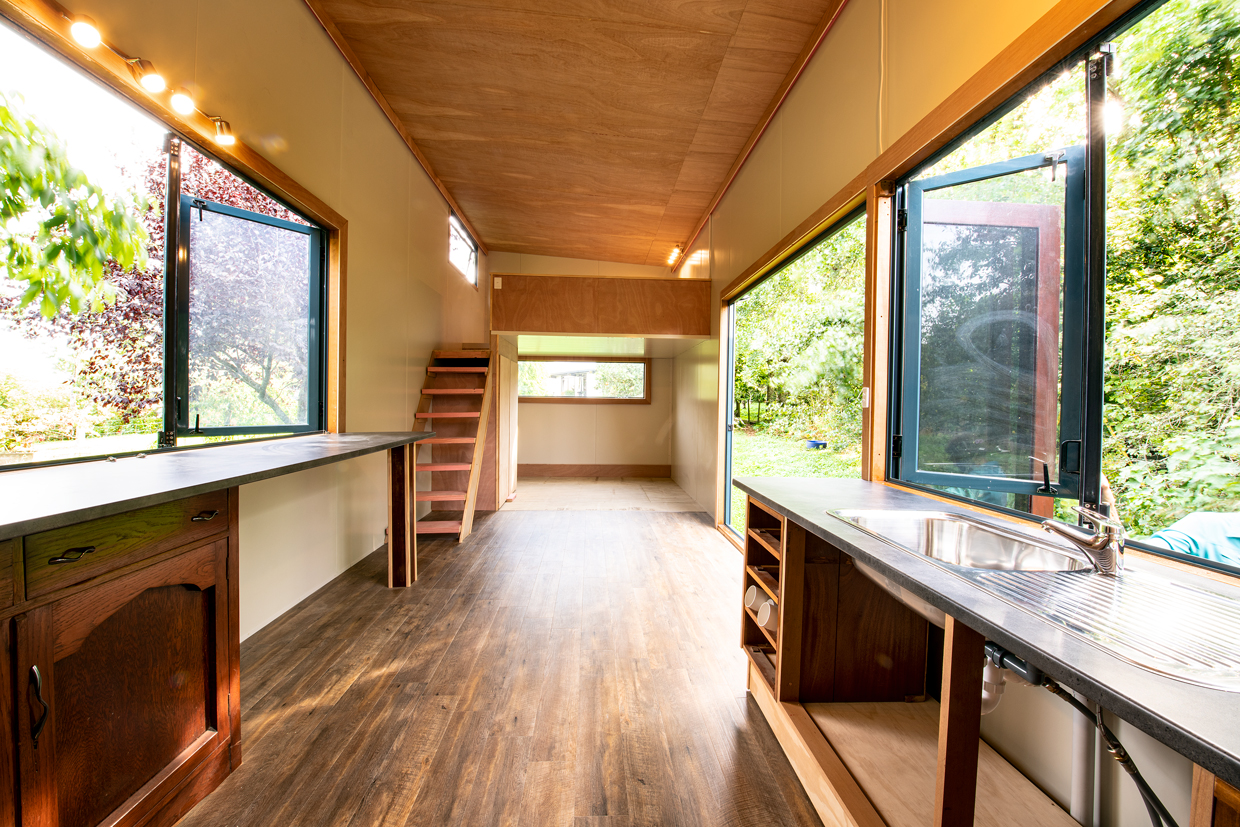

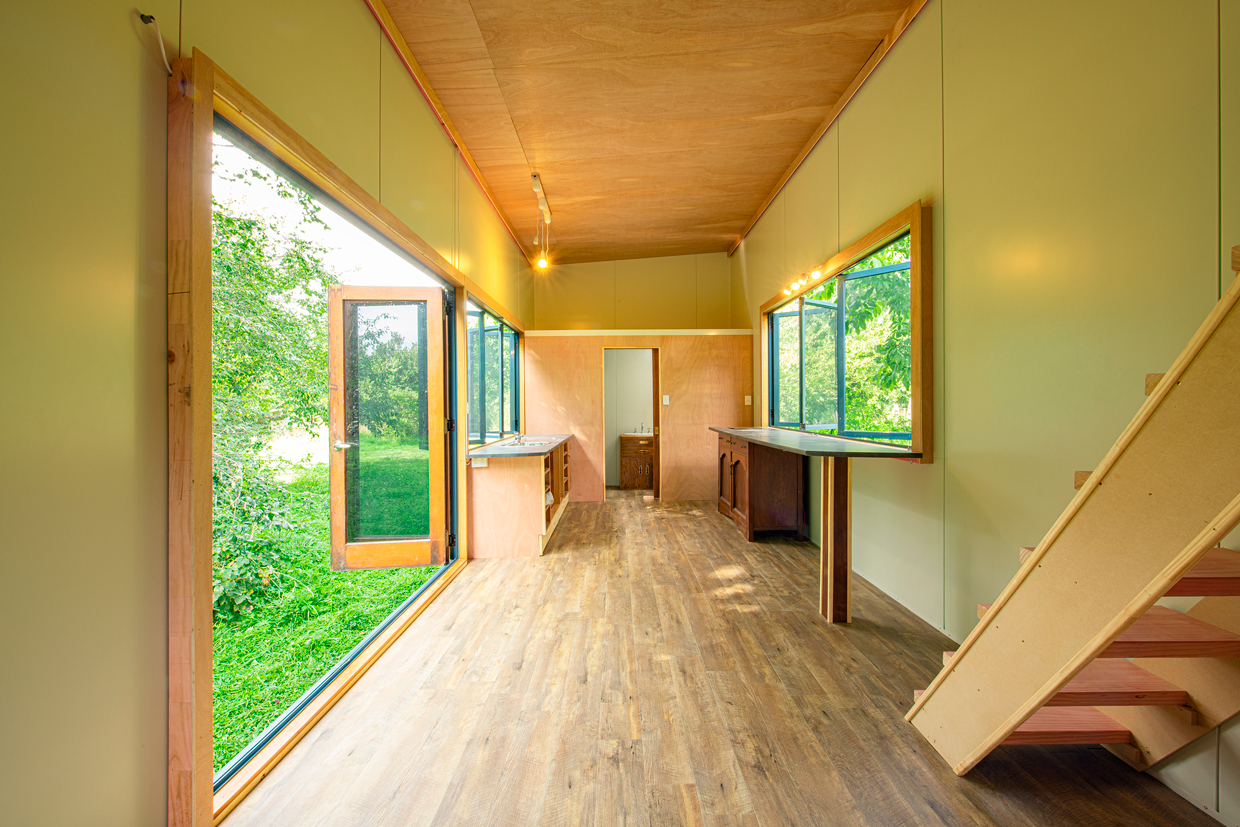

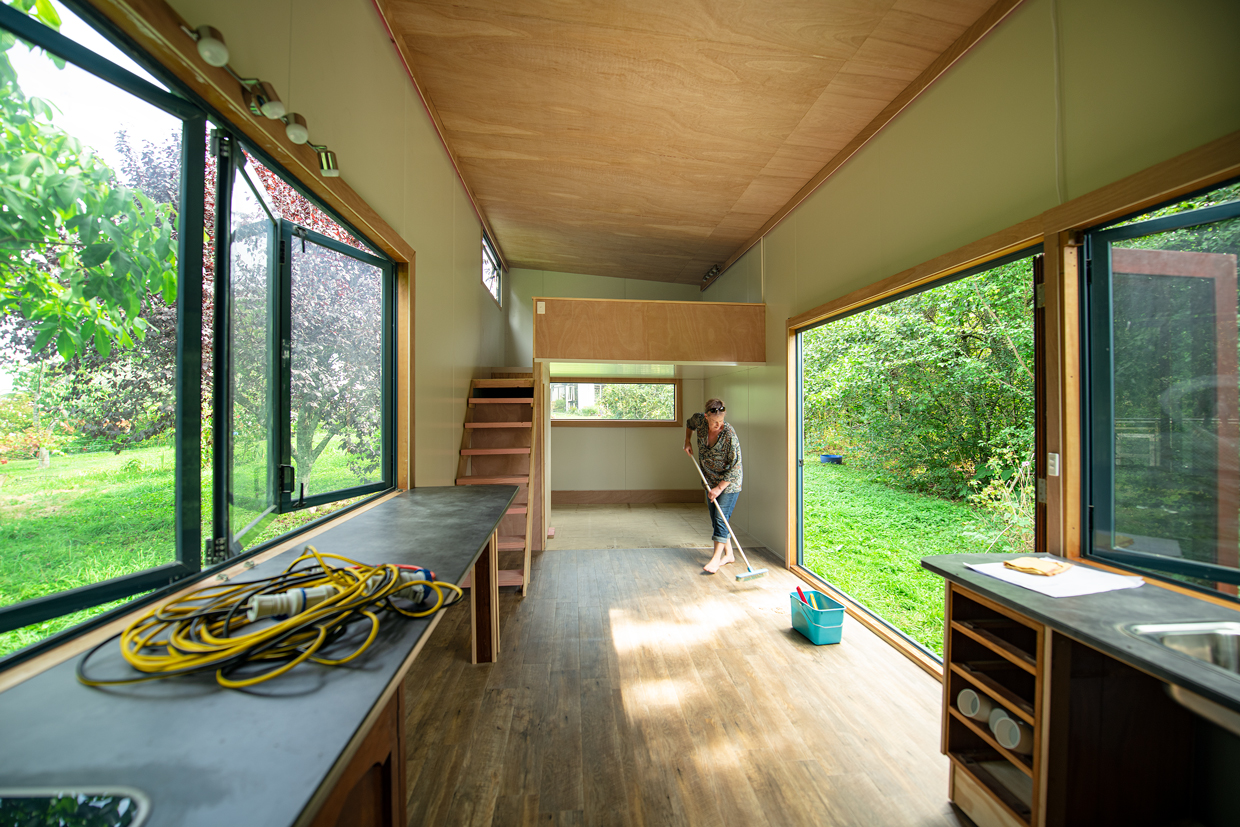

LOUNGE
Dimensions	Width 2.9 meters Length x 3.2 meters
Walls ceiling	Colorsteel with Titania finish
Aluminium French doors	Double glazed safety glass, 1400mm x 2000mm
Aluminium window	Sliding double glazed, 1200mm x 800mm
Lighting	Double LED lights
Light switch	Standard wall switch
Power point	1 x double
Storage	Under stair storage cupboard, with internal storage boxes

UPSTAIRS LOFT BEDROOM
Dimensions	Width 2.9m x Depth 1.8m
Walls ceiling	Colorsteel with Titania finish.
Aluminium window	Double glazed Sash, 1200mm x 600mm
Lighting	Double LED bed light
Light switch	2 way switch
Power point	1 x double

LOFT / STORAGE
Dimensions	Width 2.9 meters Depth 1 meters
Walls ceiling	Colorsteel with Titania finish.
Access	7 rung ladder
Window	Optional
Lighting	Optional
Power point	Optional

Legal requirements
Warrant of fitness	36 months
Electrical warrant	Compliance certified
Trailer registration	1 year
LPG	Gas certified
Power board	RCDBO Switchboard x 2 switches
	RCDBO Mains 16amp / Lighting 6amp
Insulation rating	R 3.6

LEGAL NOTICES
Legal Notice	For safety reasons, when transporting or moving a tinyhome, no people or animals are allowed inside, and if you have a bath, it must be empty.
Certification	Changing, altering, adjusting or moving any of the certified amenities or structures, nulenvoids certification. Only qualified certified tradesmen are to carry out such work.
Insurance	Please note : Insurance cover is not included.

overview

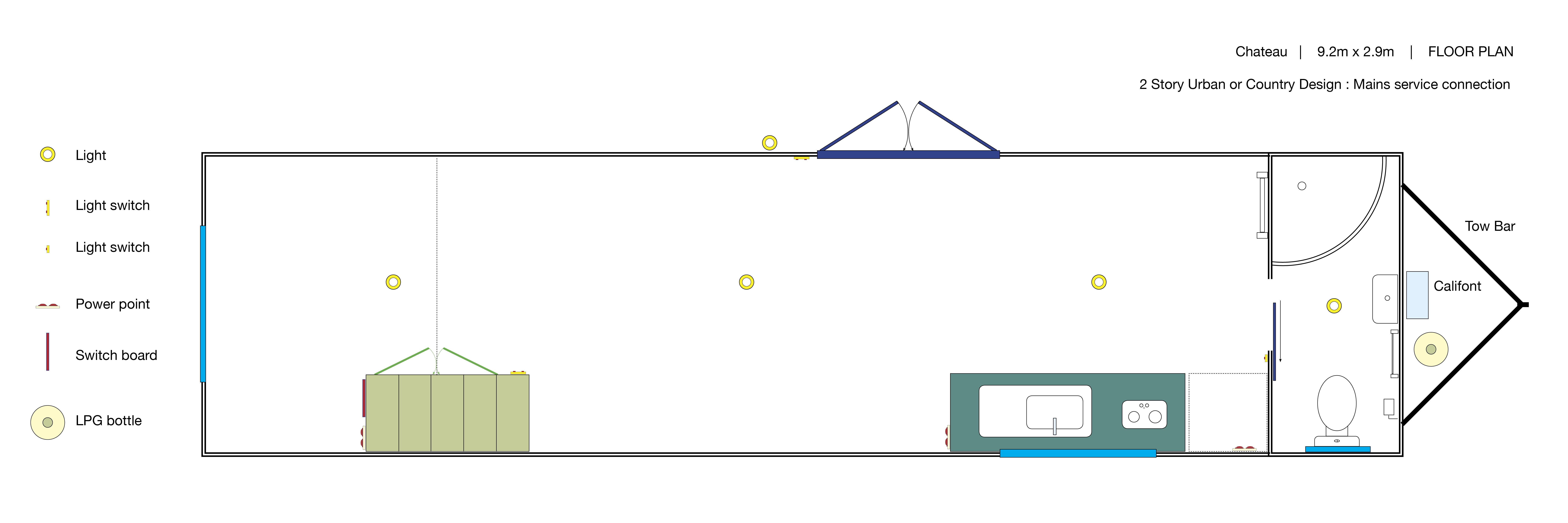

Plans	Plans are only for stage one draughting, as the fit-out is dependant on the amenities and fixtures you choose.

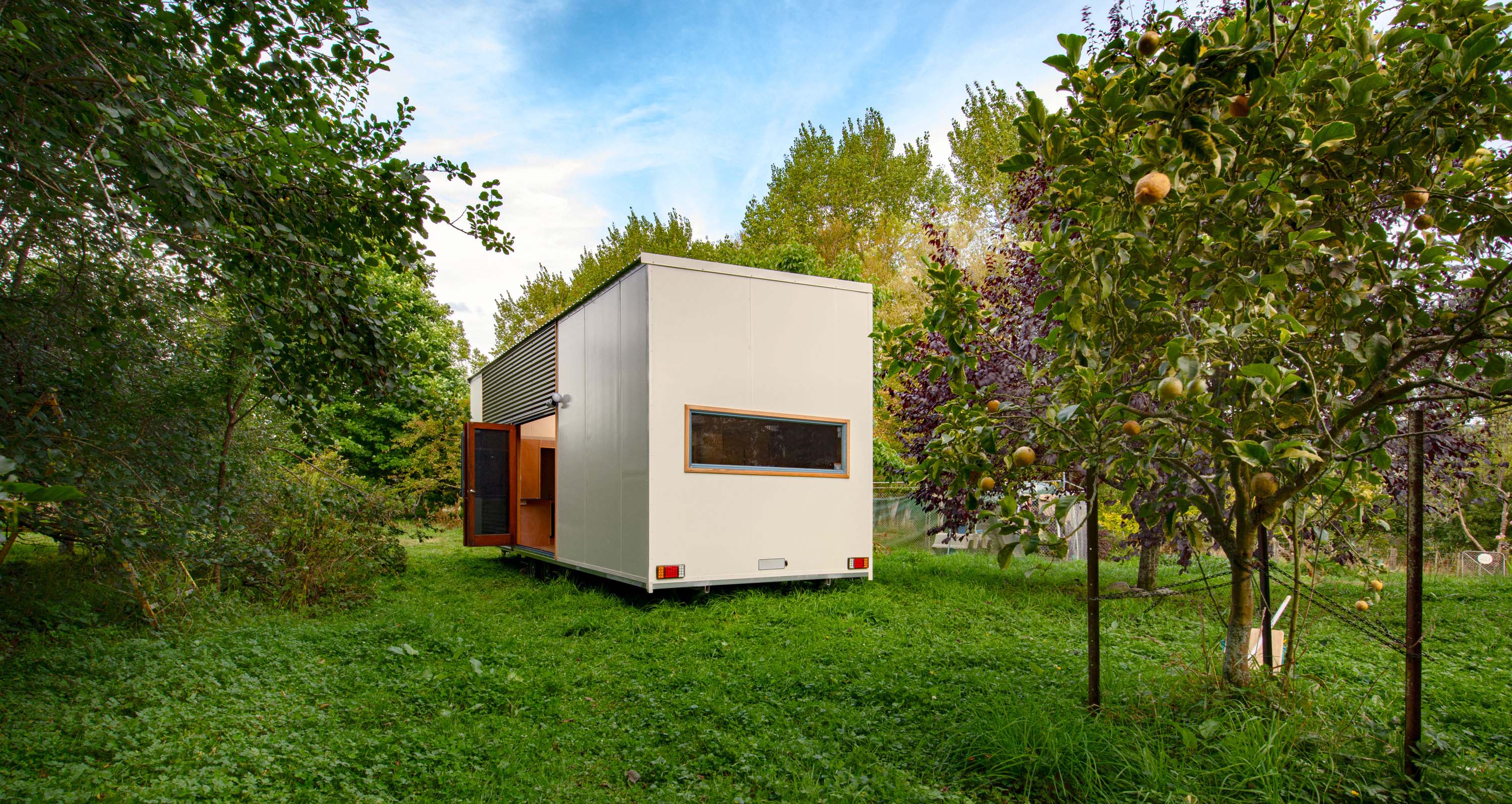

Urban Design	The exterior is made using insulated colorsteel. Urban configuration : Mains services: Water supply, electrical supply and mains waste.
Country Design	Classic wood finish and is the same cost as the Urban Design. Country configuration : Mains services: Water supply, electrical supply and mains waste.
Off the grid package	Off the grid packages or partial off the grid packages are available, subject to cost. For more information "EXRTA'S"
Customising	Your home is made of your ideas. As there are too many options to list all the possibilities, the best idea is to take a look at : "EXRTA'S" then contact Brent to discuss the possibilities and any additional costs.
Maintenance	If you love your tinyhome maintenance is a way to show it. URBAN DESIGN, Colorsteel Exterior : Washing the exterior from time to time is important, especially if you're near the coast. COUNTRY DESIGN, Wooden Exterior : Cleaning and oiling the wooden exterior every couple of years is required.
Disclaimer	Information is offered with good intent, please note the images are indications only as every tinyhome is different subject to people customising their interior. This document is not a contract and maybe subject to change over time. Please contact Brent for a written contract as required.
